FIRE DETECTION AND AEROSOL EXTINGUISHING SYSTEMS

S2
S3
S4
S5
S6

aypik

AYPİK SAVUNMA SİSTEMLERİ, ABOUT US

It has produced the products of GÖZCÜ Brand which is included in Aypik Savunma Sistemleri, as a desing/production with CNC machineries and with its personnel possessing high levels of expertise, in our 650 m² interior complex. By employing our 17 years of defense industry and production experience in this area, it has completed the GÖZCÜ fire detection and extinguishing systems which is a domestic brand and a domestic product, after 30 years of research and development, has presented its product by adopting the relevant industrial necessities. Our brand and our products are registered and are protected by their patents.

By completing all the necessary test during the research and development process which started in the year of 2018, our products, with their engineering and design works, are suitable for safe and light integration. Our corporation and our team will continue producing different designs and high security products in aerosol extinguishing systems. Our goal is, by presenting our products and brand to the global market, to increase our contribution to exportation in this field, as well as the field of defense industry.

gozcu

GÖZCÜ FIRE TECHNOLOGIES

With its swift intervention performance, aerosol systems are stored in depressurized capsules without harming the environment and human health. It is economical, light and suitable for long term usage without requiring maintenance.

Our Aerosol fire extinguishers, is discussed concerning the extinguishers with halon gas and halon gas extinguishing systems, in regards to their damage to environment and negative user experience. Therefore, aerosol systems are being preferred in the industry with low costs and no maintenance alternatives.

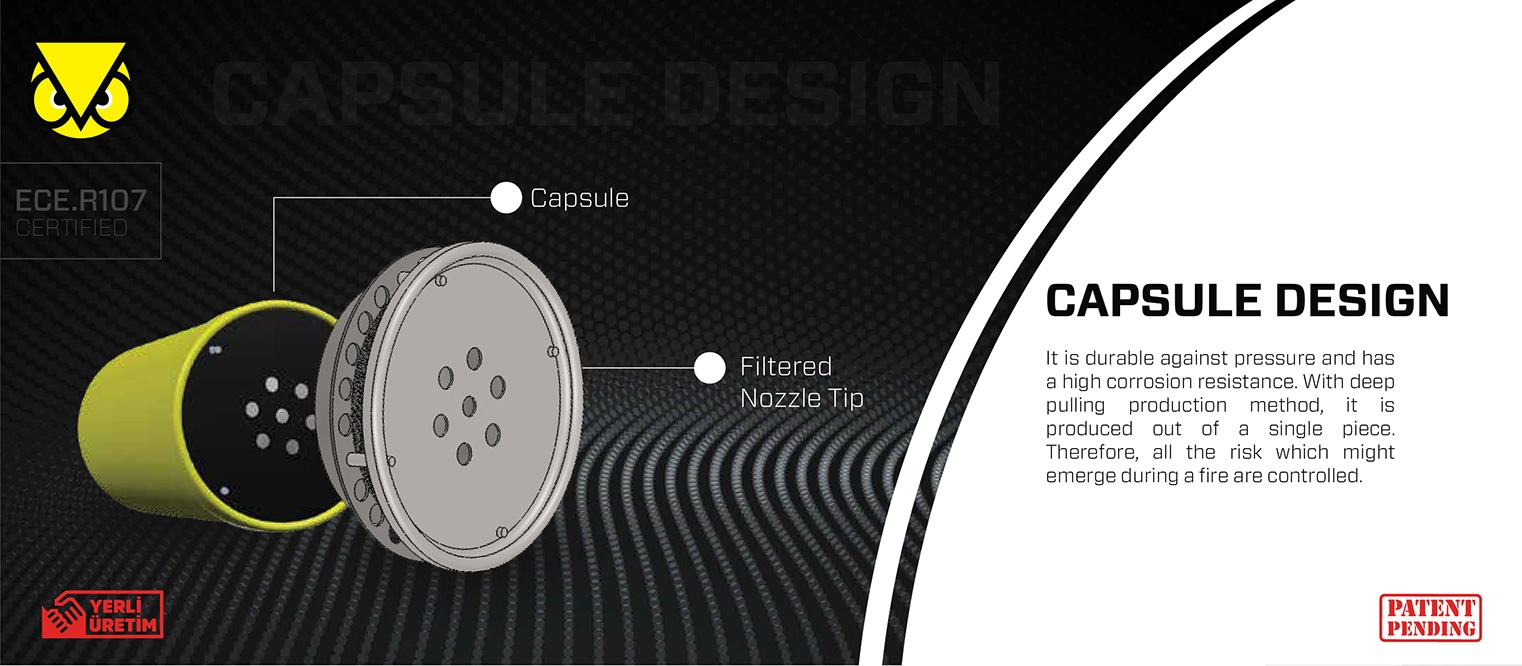

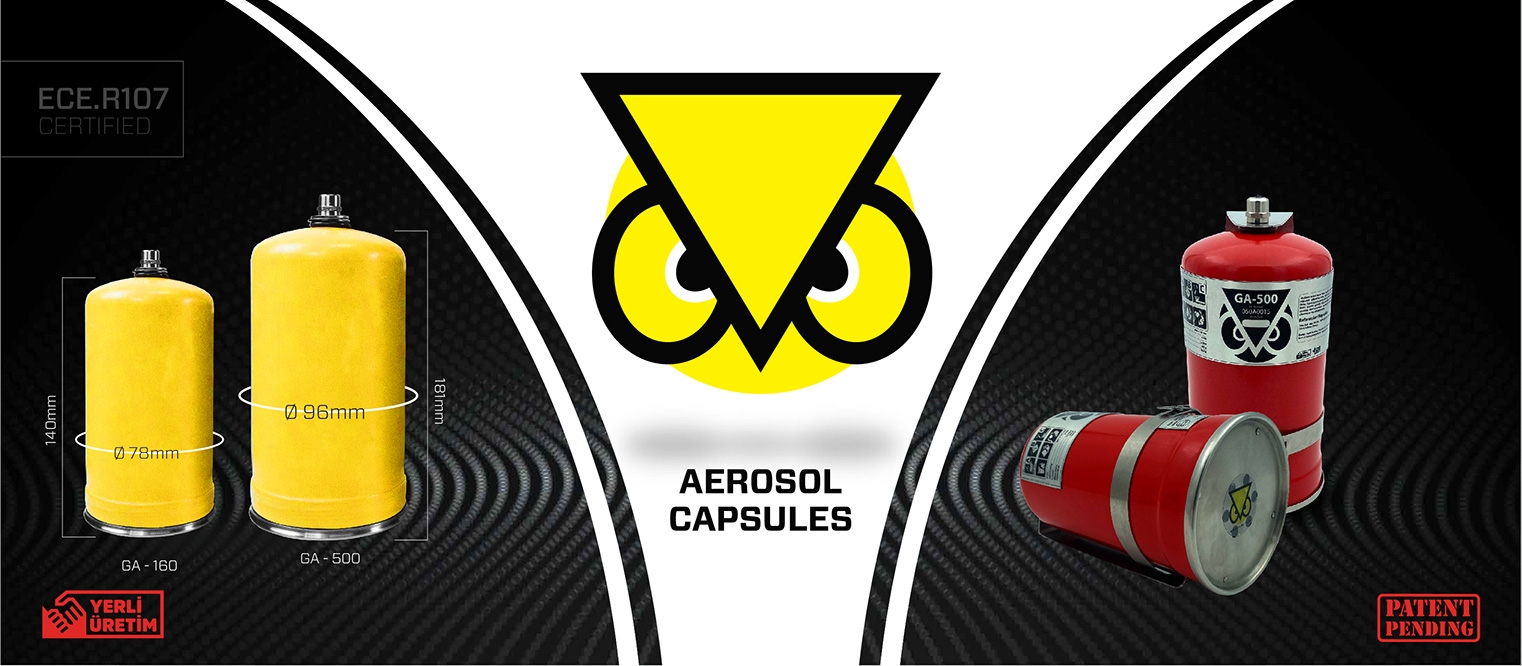

Inside our aerosol capsules, extinguishing dust component is stored as pressed solid blocks inside the container. Extinguisher component created by the interior reaction, is efficiently activated with a metallic interior design. Component block and high corrosion resistant capsules, includes our brand which we have established as a local product.

For detailed technical information, please contact us.

  • Organic Based Material Fires
  • Liquid Flammable Fires
  • Flammable Gas Fires
  • Oil Fires
  • Electric Fires

Application Areas

  • Automobile Industry
    Land Vehicles - Electrical Vehicles - Construction Vehicles
  • Military Vehicles
    Personnel Transporter - Delivery Devices - Military Compounds
  • Maritime
    Naval Vehicles - Shipyards
  • Complex
    Archives - Transformer and MT / TL Rooms - Generator Rooms
  • Panel / Cabin Extinguishers
    Electrical Panels - Data Cabins
  • Electronic Communication
    Cell Sites - Data Centres

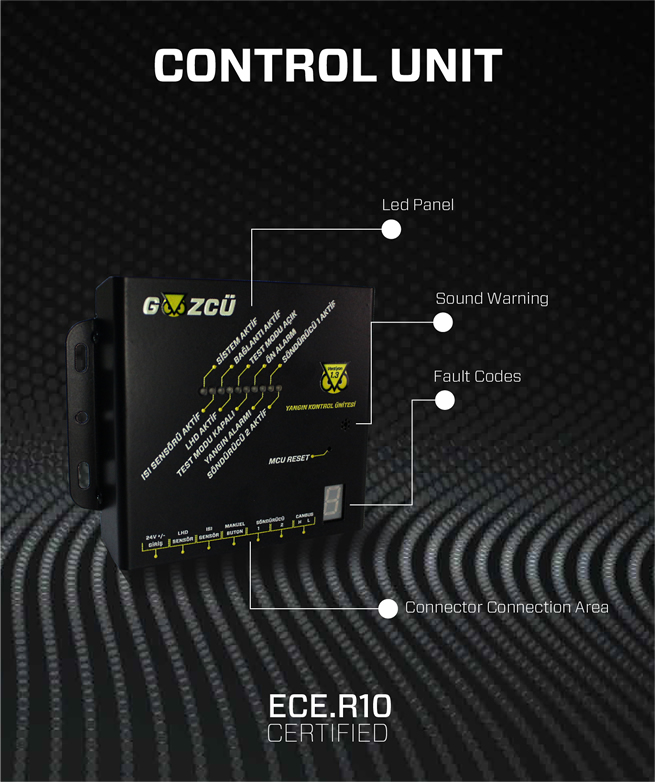

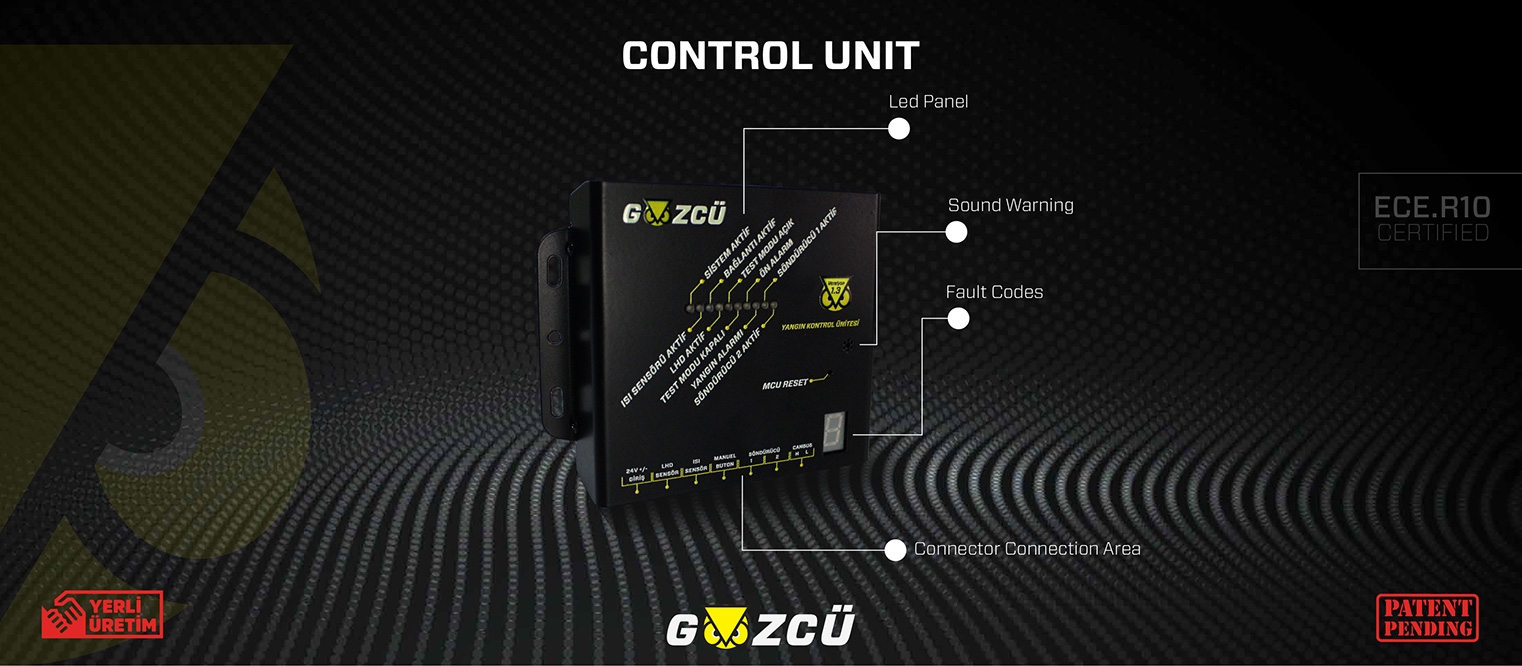

System Features

  1. Faulty alert control system.
  2. System condition inspection and alert.
  3. Automatic and manual intervention to fire.
  4. Temperature pre warning system and integrated Canbus (Sae J1939).
  5. Detection sensor and connection line, fault inspection and alert.
  6. Event examination and high current protection with Data logger.
  7. Double processor inspection.
  8. Extinguisher fault inspection and warning.
  9. Extinguishing capacity for A,B and C class fires.

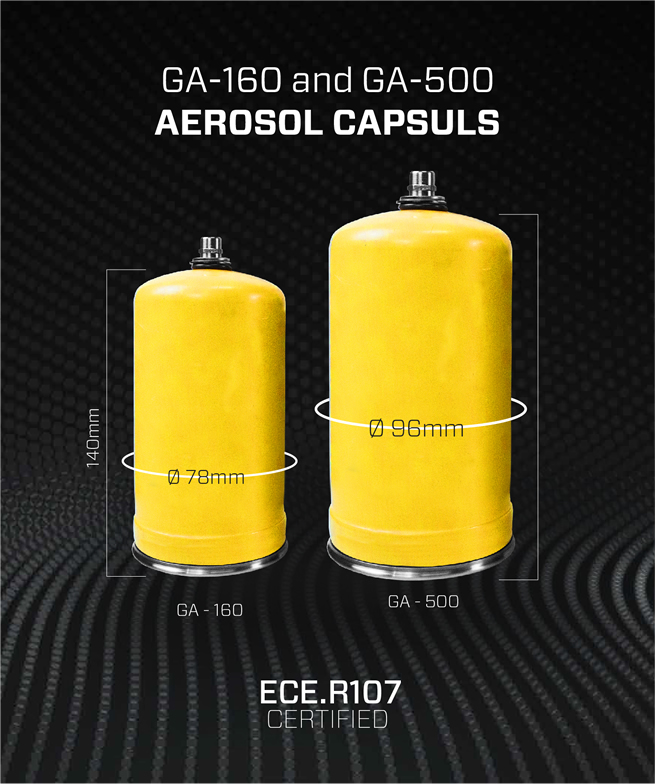

CapsuleComponent WeightExtinguishing
GA-5555 Gr0,5 m³ Max
GA-110110 Gr1,1 m³ Max
GA-160160 Gr1,6 m³ Max
GA-250250 Gr2,5 m³ Max
GA-500500 Gr2,5 m³ Max
GA-650650 Gr6,5 m³ Max
GA-12501250 Gr12,5 m³ Max
GA-17501750 Gr17,5 m³ Max
GA-22502250 Gr22,5 m³ Max
GA-35003500 Gr33,5 m³ Max
GA-47504750 Gr47,5 m³ Max
GA-62506250 Gr62,5 m³ Max

  • ► With 2 micro-processors able to support each other, by inspecting all the components of the system in 1 second resolution, is able to continuously control the values received from sensors.
  • ► Alert, fault and events are recorded with data logger.
  • ► Is able to operate between the temperatures of -40°C and +85°C.
  • ► Alert, transfers the records of alerts, faults and incidents to Canbus system in real time through Canbus Sae J1939.
  • ► Should the feeding voltage of the power sources feeding the integrated canbus system and in vehicle system drop down to 30%, since the system operation parameter is wide and has a low consumption, system is able to continue its operation in a stable manner.
  • ► Even under the toughest conditions, system is designed to continue its operation thanks to its measurements such as high voltage, ESD, high current, short circuit, high temperature protections.
  • ► With its metal chassis of 1 mm thickness and painted with electrostatic paint, it has a high endurance and visuality.

CERTIFICATES

Please contact us for the certificates of our corporation and other certificates that we have in different industries.
